丢弃Jenkins，轻量级CICD方案 -- Gitea Actions

前言

从 Gitea 1.19 版本开始，Gitea Action 成为了内置的 CI/CD 解决方案。设计上与 GitHub Actions 相似且兼容，依托于 act_runner（A runner for Gitea based on act）实现本地运行工作流。相比传统Jenkins CICD方案，Gitea Action使用YAML文件定义工作流，配置简单直观。容器化的Runner使其工作节点更加灵活，且支持异步CI/CD。无需再维护额外CI服务器，所有流程都在容器中进行，在基础镜像定制完整的前提下不受环境依赖影响。

使用Gitea Actions，需已安装Gitea环境，Gitea安装过程：Gitea 安装部署 (opsnote.top)

1. 获取 Runner 注册Token

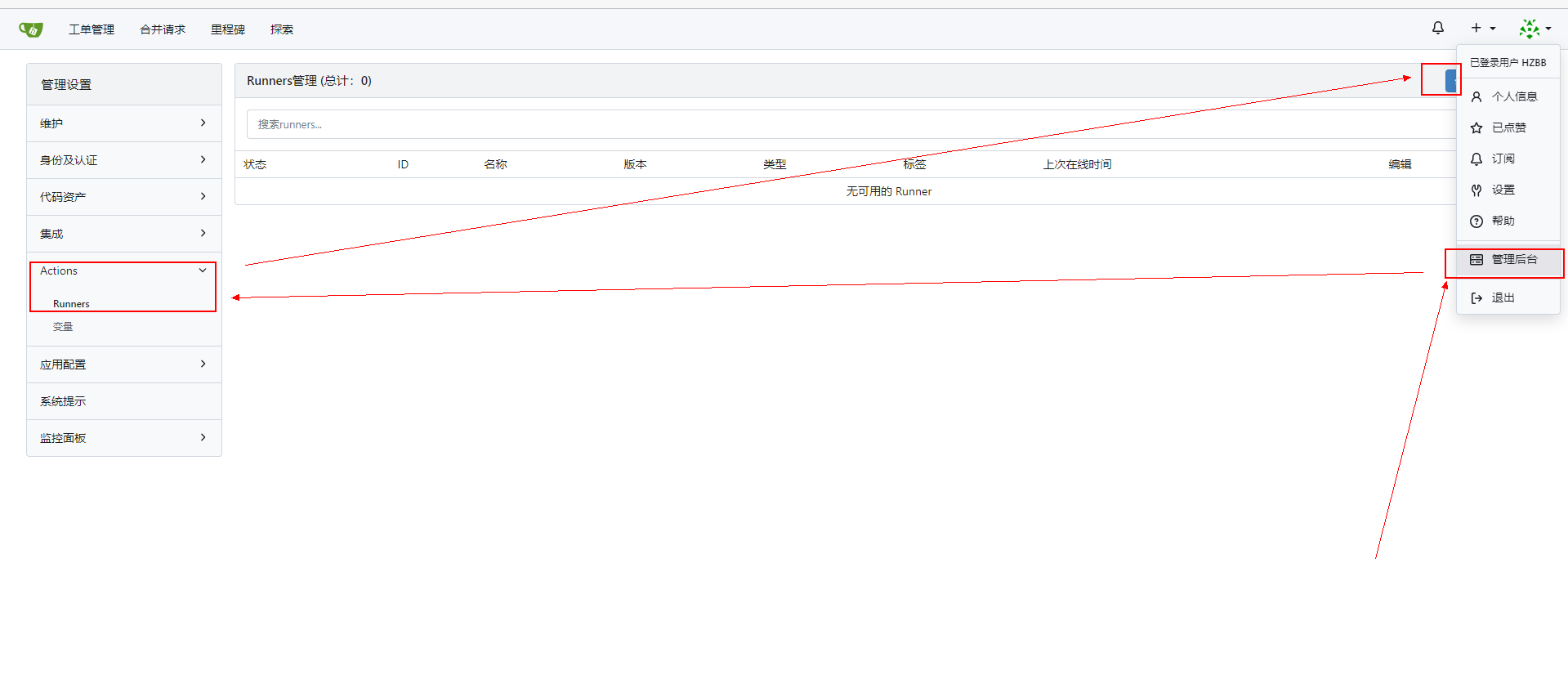

管理后台 --> Runners --> 创建Runner，复制 REGISTRATION ToKEN

2. 创建 Runner 节点

2.1 创建 Runner 的 Docker-compose 文件，Runner 运行于容器中

mkdir -p /data/Act_runner/conf && cd /data/Act_runner && vim docker-compose.yml

version: "3.1"
services:
  runner:
    image: registry.cn-guangzhou.aliyuncs.com/hzbb/act_runner:0.2.11
    restart: always
    container_name: act-runner
    environment:
      CONFIG_FILE: /config.yaml
      GITEA_INSTANCE_URL: "http://IP:23000/" # gitea仓库地址
      GITEA_RUNNER_REGISTRATION_TOKEN: "***********" # REGISTRATION ToKEN
      GITEA_RUNNER_NAME: "Runner-node1" # 节点名称
      GITEA_RUNNER_LABELS: "${RUNNER_LABELS}"
    volumes:
      - ./conf/config.yaml:/config.yaml
      - ./data:/data
      - /var/run/docker.sock:/var/run/docker.sock

2.2 修改 Runner 配置

 vim /data/Act_runner/conf/config.yaml

# Example configuration file, it's safe to copy this as the default config file without any modification.

log:
  # The level of logging, can be trace, debug, info, warn, error, fatal
  level: info

runner:
  # Where to store the registration result.
  file: .runner
  # Execute how many tasks concurrently at the same time.
  capacity: 1
  # Extra environment variables to run jobs.
  envs:
    A_TEST_ENV_NAME_1: a_test_env_value_1
    A_TEST_ENV_NAME_2: a_test_env_value_2
  # Extra environment variables to run jobs from a file.
  # It will be ignored if it's empty or the file doesn't exist.
  env_file: .env
  # The timeout for a job to be finished.
  # Please note that the Gitea instance also has a timeout (3h by default) for the job.
  # So the job could be stopped by the Gitea instance if it's timeout is shorter than this.
  timeout: 3h
  # Whether skip verifying the TLS certificate of the Gitea instance.
  insecure: false
  # The timeout for fetching the job from the Gitea instance.
  fetch_timeout: 5s
  # The interval for fetching the job from the Gitea instance.
  fetch_interval: 2s
  labels:
    - "ubuntu-latest:docker://registry.cn-guangzhou.aliyuncs.com/hzbb/runner-images:ubuntu-latest"
    - "ubuntu-22.04:docker://registry.cn-guangzhou.aliyuncs.com/hzbb/runner-images:ubuntu-22.04"
    - "ubuntu-20.04:docker://registry.cn-guangzhou.aliyuncs.com/hzbb/runner-images:ubuntu-20.04"
    - "maven-3.8:docker://registry.cn-guangzhou.aliyuncs.com/hzbb/runner-images:maven-v3.8.8"

cache:
  # Enable cache server to use actions/cache.
  enabled: true
  # The directory to store the cache data.
  # If it's empty, the cache data will be stored in $HOME/.cache/actcache.
  dir: ""
  # The host of the cache server.
  # It's not for the address to listen, but the address to connect from job containers.
  # So 0.0.0.0 is a bad choice, leave it empty to detect automatically.
  host: ""
  # The port of the cache server.
  # 0 means to use a random available port.
  port: 0

container:
  # Specifies the network to which the container will connect.
  # Could be host, bridge or the name of a custom network.
  # If it's empty, act_runner will create a network automatically.
  network: ""
  # Whether to use privileged mode or not when launching task containers (privileged mode is required for Docker-in-Docker).
  privileged: false
  # And other options to be used when the container is started (eg, --add-host=my.gitea.url:host-gateway).
  options:
  # The parent directory of a job's working directory.
  # If it's empty, /workspace will be used.
  workdir_parent:

host:
  workdir_parent: /

修改labels配置使其默认从阿里云仓库拉取镜像

2.3 运行 Runner 容器

cd /data/Act_runner && docker-compose up -d

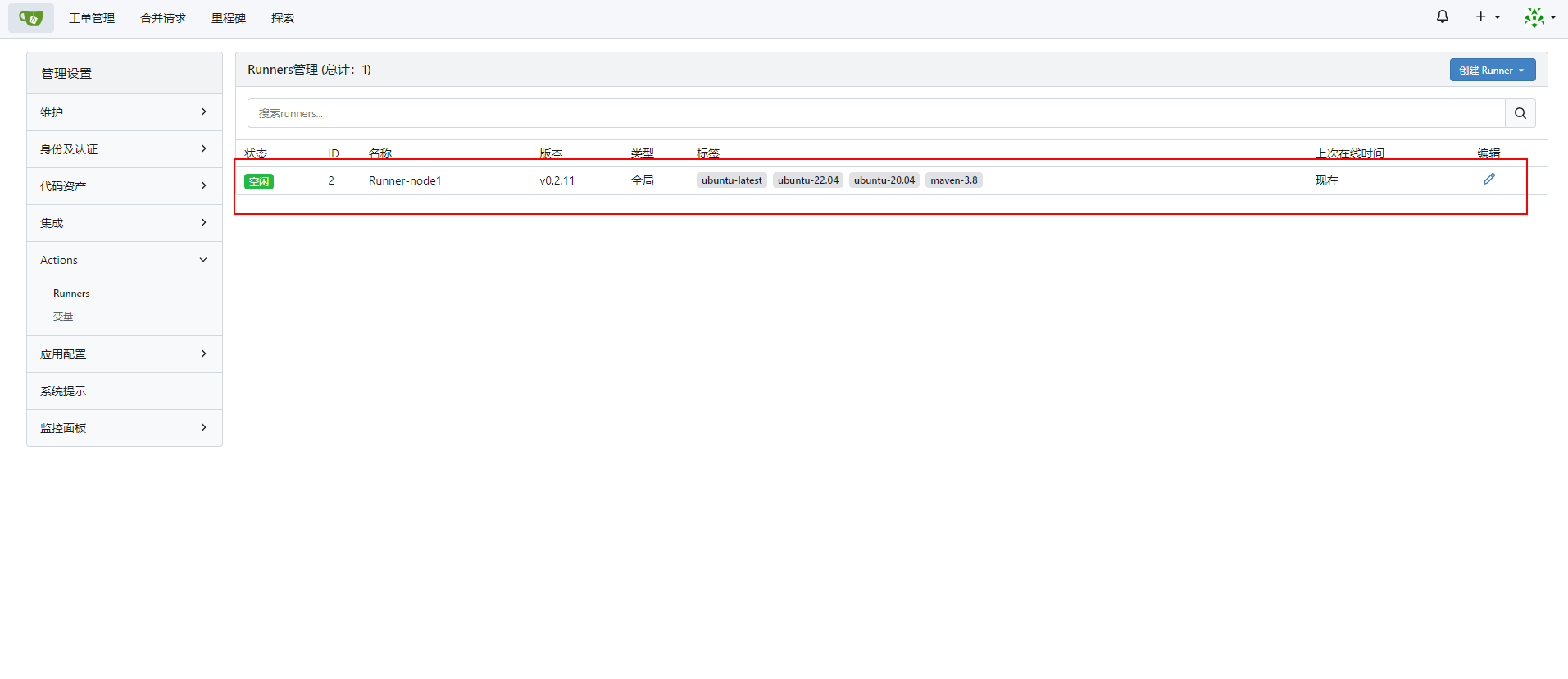

此时可以看到 Runner 已经注册上来

3. 配置变量

我们执行CICD的过程中会用到一些自定义的变量，如镜像仓库地址、镜像仓库账号、镜像仓库密码等。如果同名变量存在于多个级别，则级别最低的变量优先。仓库级别的变量总是比组织或者用户级别的变量优先被选中。

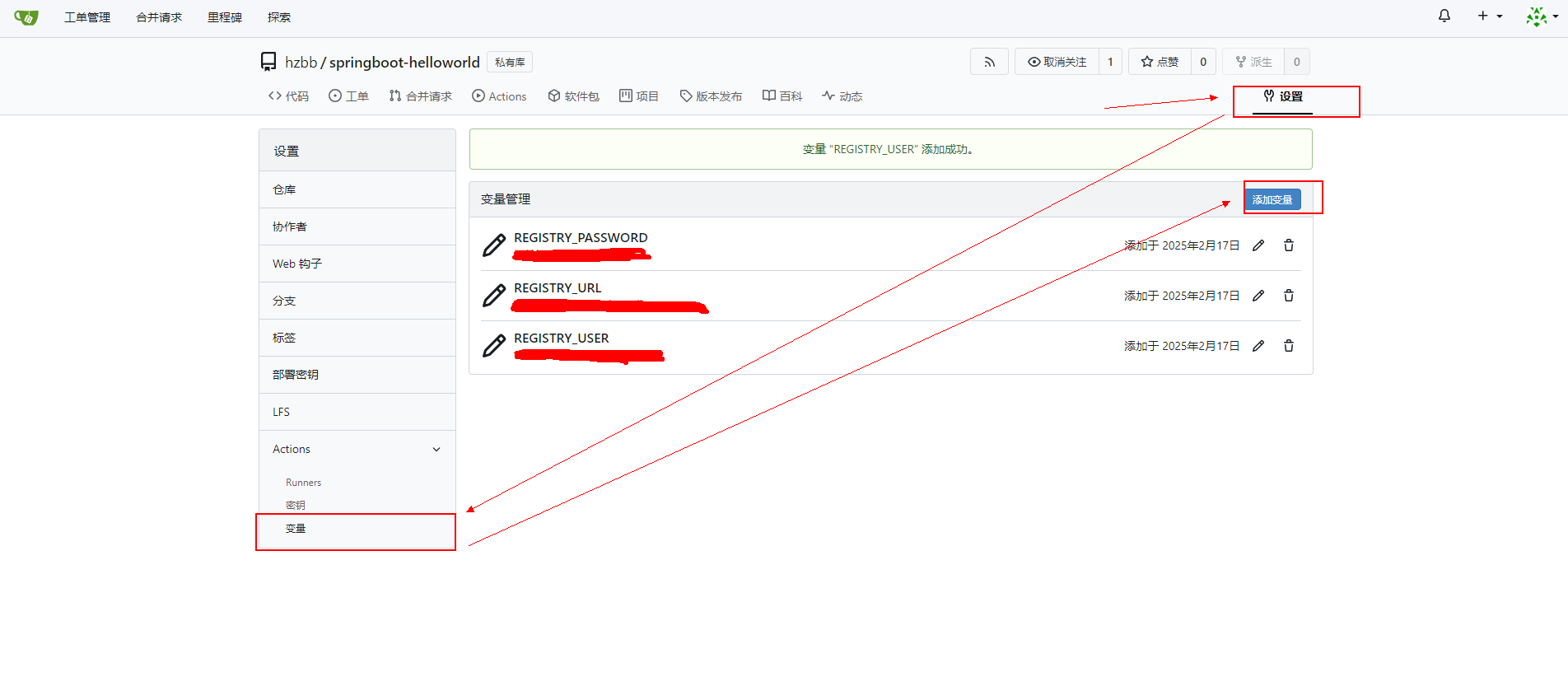

设置 --> 变量 --> 添加变量

这个仓库使用的变量，在仓库设置中添加，如果是这个组织下所有的仓库都使用相同的变量，则在组织设置中添加变量即可。

4. JAVA应用CI测试

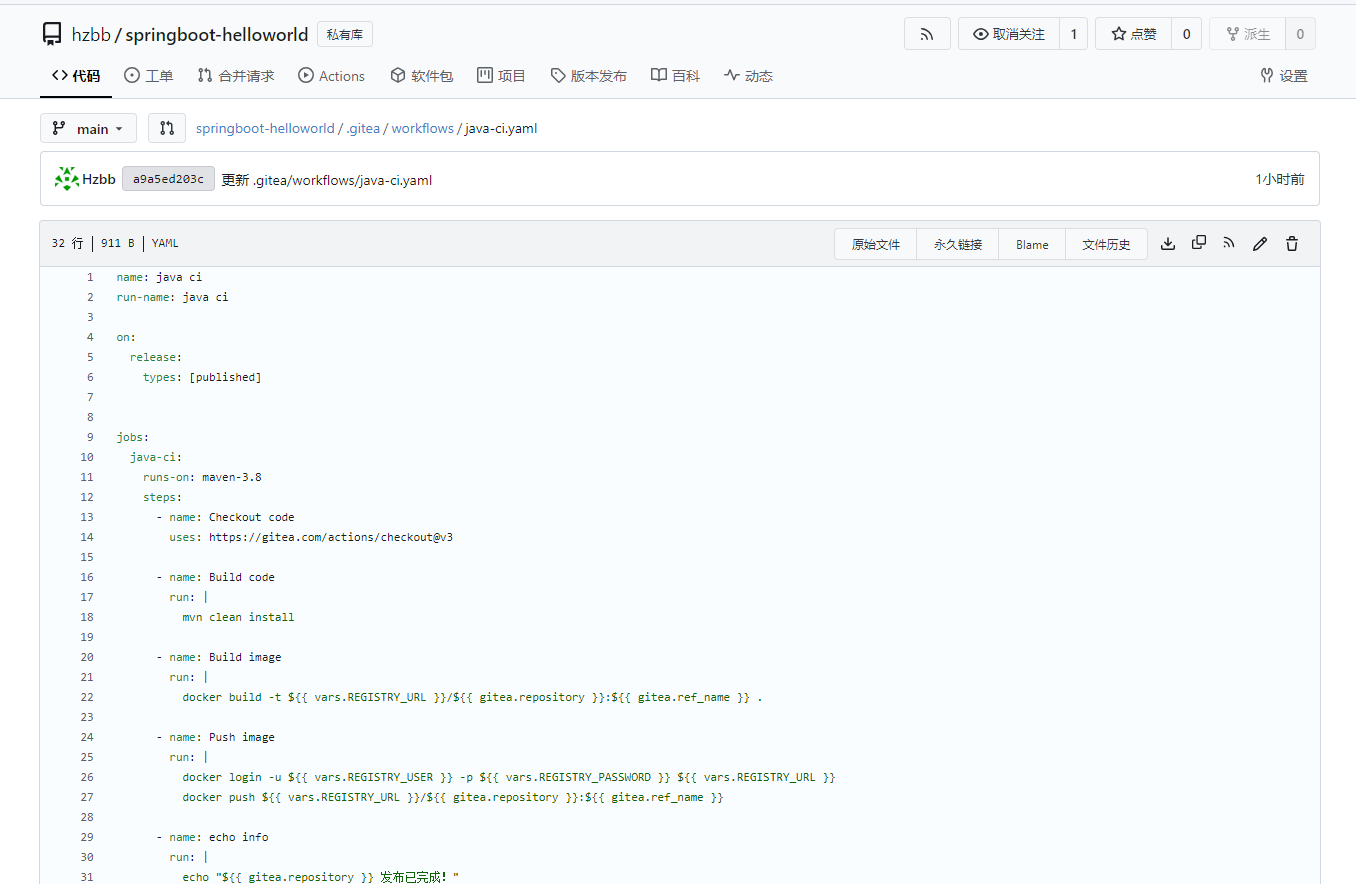

在仓库中新建一个 .gitea/workflows/java-ci.yaml 文件，内容如下

name: java ci
run-name: java ci

on:
  release:
    types: [published]


jobs:
  java-ci:
    runs-on: maven-3.8
    steps:
      - name: Checkout code
        uses: https://gitea.com/actions/checkout@v3

      - name: Build code
        run: |
          mvn clean install

      - name: Build image
        run: |
          docker build -t ${{ vars.REGISTRY_URL }}/${{ gitea.repository }}:${{ gitea.ref_name }} .

      - name: Push image
        run: |
          docker login -u ${{ vars.REGISTRY_USER }} -p ${{ vars.REGISTRY_PASSWORD }} ${{ vars.REGISTRY_URL }}
          docker push ${{ vars.REGISTRY_URL }}/${{ gitea.repository }}:${{ gitea.ref_name }}

      - name: echo info
        run: |
          echo "${{ gitea.repository }} 发布已完成！"
          echo "镜像地址：${{ vars.REGISTRY_URL }}/${{ gitea.repository }}:${{ gitea.ref_name }} "

文件说明：
